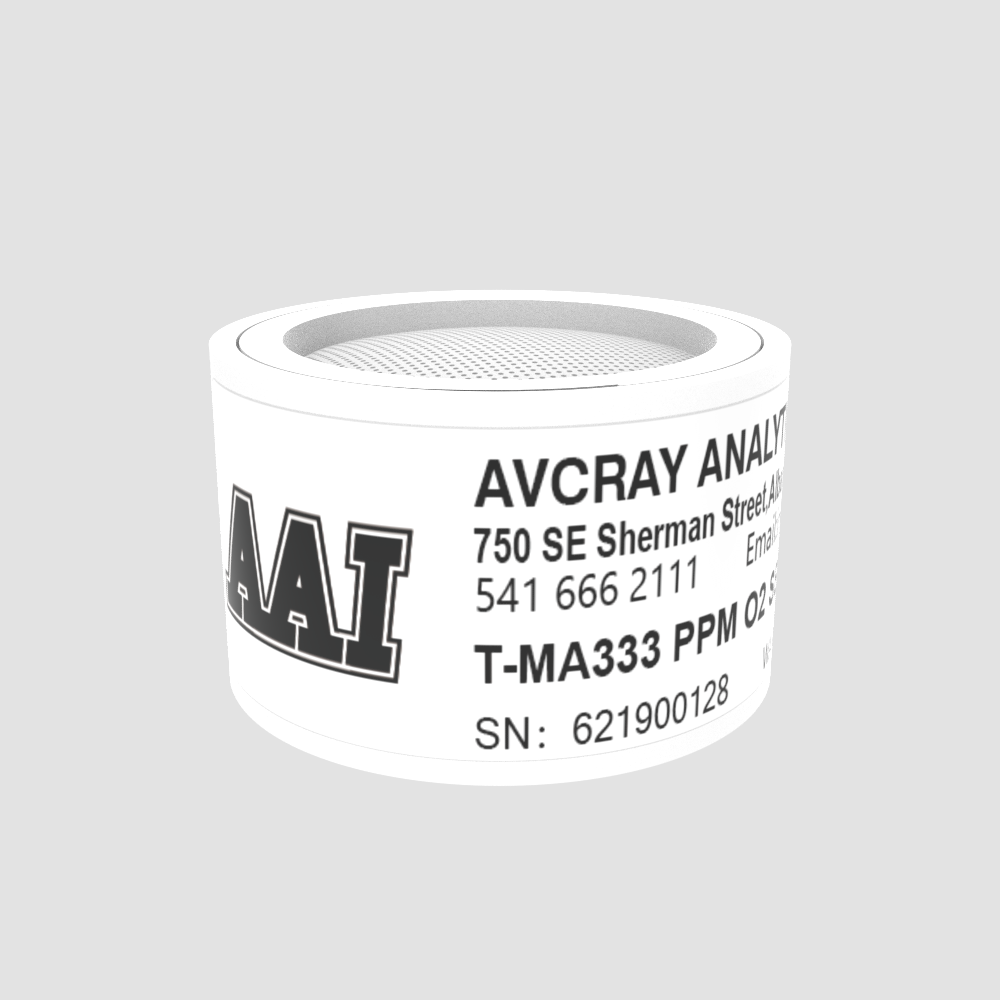

T-MA333 PPM O2 Sensor replaces Analytical Industries Model GPR-12-333 PPM O2 sensor. Current output of this PPM O2 sensor in air is well above 600 uA thus giving a good signal to noise ratio at low PPM O2 levels. Fast response and quick recovery from air to under 10 PPM in 45 minutes. Expected sensor life at ambient temperature and pressure is 18 months. Its proprietary electrolyte formulation enhances sensor performance at extreme ends of recommended operating temperature range. Sensor is designed, developed and manufactured in the USA.
This sensor Replace Advanced Instruments, Inc., trace oxygen analyzer, explosion proof, intrinsically safe transmitters and portable analyzers.
GPR-1600
GPR-1200
GPR-1100
GPR-18
GPR-1800 Series
GPR-1500 Series
| Measuring Range | 0-10 PPM Oxygen |
| Accuracy 1 | +/-2% of Full Scale |
| Signal Output 2 | 285- 590 uA |
| Linearity | +/-2% of Full Scale |
| Response T90 | 7 sec |
| Temp Coefficient | compensated |
| Operating Temp | 0 to 45oC |
| Recommended Storage 3 | 0 to 25°C |
| Temperature Coefficient | Compensated |
| Shelf Life 4 | 6 months |
| Humidity Non-condensing | 0-99% RH |
| Expected Life | 18-24 months |
| Warranty 5 | 12 months |
| Electrical Connector | 2 Ring Gold Disk |
* Conditions – Specification validated during design and in pursuit of improvement are subject to change without notice
- At constant temperature and pressure.
- In air (20.9% oxygen) at 25°C and 1 atm.
- Sensor may be stored up to 55°C on an intermittent basis, for example, during transportation.
- In original Package at 25°C and 1 atm.
- Under normal operating conditions, the sensor is warranted to be free of defects in material and workmanship for the specified period provided the sensor is properly installed and operated. The sole remedy for sensor determined to be defective by Analytical Industries Inc. is limited to replacing the sensor. Analytical Industries In. will not be liable for buyer’s negligence, misapplication, abuse or accident.
